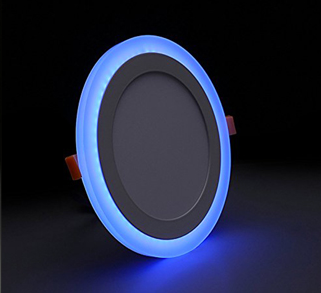

6″ LED Flat Round Panel with Blue Edge Lighting – White Frame, 12W
$22.50
Color Options
- Drop ceiling light.
- External driver is included.
- Nice flat design.
- 3 Lighting Scenes. Includes: central white light only, blue edge light only, and Both lights at the same time.
- Easy to Change between scenes. Just toggle your regular switch to change to the next scene.
In stock
Description
LED flat round panels are ideal for installation of ceiling lights where the space between the ceiling and the drop ceiling is limited. It comes with a flush and amazing design, and it fits perfect in 6-inch holes. In general, housings (cans) are used for the majority of ceiling lights, but this can only be accomplished where sufficient height is specified for placement. However, when faced with circumstances of not having the space greater than 4-5 inches to fit standard housings, either due to new construction or remodeling, this product is the ideal solution. As with all of our products, style and energy efficiency is essential and is offered in this product as well. Note that each LED Down light comes with an external individual driver. Do not use a different external driver to feed this product.
Specifications
Electrical Information
Power Consumption
12W
Dimmable
No
Driver Type
External Constant Current
Input Voltage
120VAC
Lighting Characteristics
Color Options
6000K, Blue Edge
Luminous Flux
900Lm
Beam Angle
120°
Lighting Cover
Frosted
CRI
>80
Life Span
50,000 Hrs
General Characteristics
Hole Size
6"
Length
6"
Width
6"
Height
2,5"
Finish
White
IC Rated
No
IP Rating
IP20
Shape
Round
Suitable For Damp Location
No
Suitable For Wet Location
No
Warranty
2 Years
Size Reference
6"
Installation Related Information
Connection
Hardwired Connection
Mounting Type
Snap-In Clicks
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
