LED Module Sheet, 24VDC
$47.99
- Great Product for Backlighting.
- 160° lenses.
- Specially Built for Limited depth.
- To be installed at least 3/4″ apart from the surface to be illuminated.
- Popular for Counter top and Backsplash Backlighting.
- Plug and Play Connector.
Components frequently needed:
Power Supplies
Low Voltage Dimmers
Description
LED modules have been introduced successfully in the world of signs in recent years. The LED module provides better light distribution due to its versatility and surpasses energy efficiency by other technologies. The chips are excellent quality and its ability to radiate light is impressive and affordable. LED Modules are used for channel letters, display sets, pylon signs and more. All modules have passed the strict quality tests imposed by the UL certification.
Specifications
Electrical Information
Power Consumption
22W
Dimmable
Yes
Driver Type
Need DC24V Power Source
Input Voltage
24VDC
Power Per Foot
17W/sqft
Lighting Characteristics
Color Options
3000K, 6000K
Luminous Flux
1,735Lm per Square/foot

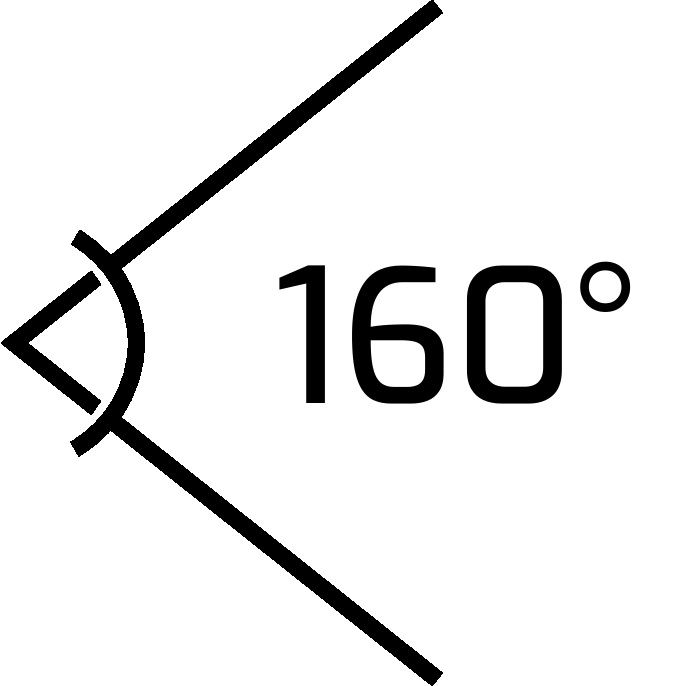

Beam Angle
160°
Chip Type
SMD2835
CRI
>75
Life Span
50,000 Hrs
General Characteristics
Length
20"
Width
9.5"
Height
0.8"
Finish
White
IP Rating
IP40
Shape
Rectangular
Suitable For Damp Location
No
Suitable For Wet Location
No
Warranty
2 Years
Installation Related Information
Connection
DC Wires/ Soldering Connection, Hardwired Connection
Mounting Type
3M adhesive Tape
Certifications
CE Compliance
Yes
Rohs Compliance
Yes
UL Recognized
Yes
Resources
Resources
<a href=”https://ecopowertechtest.com/wp-content/uploads/2021/06/Ecopowertech-EMO-SH160DXXK.pdf” target=”_blank” rel=”noopener”>EMO-SH4V160D Datasheet</a>
